Portable Inspection Camera

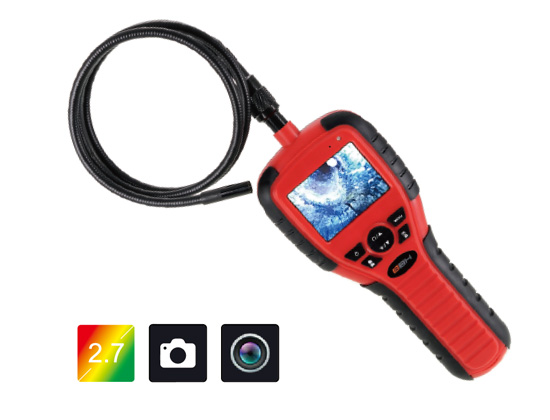

QBH KS07 Portable Inspection Camera

Introduction

This is a borescope, can realize non-destructive & real-time inspection of narrow spaces; widely used in the inspection fildes of Automotive, Pipelines, Machinery & Equipment, Chemical etc.



Product Features

2.7 inch screen
AV signal
8.5mm Dia snake probe, 300,000 pixel
Screen image rotation and brightness adjustable,
LED brightness adjustable
Support to take photos & video recording
TF card Max 32G
4 PCS AA battery power supply(power by lithium
battery as optional)

Specifications

Snake tube

Camera dia. Effective pixel Focus distance View angle Tube length LED
Φ3.9 320*240 10mm-30mm 90˚ 1m standard(Max. 20m) 2X0402 LED
Φ5.5 640*480 30mm-80mm 60 ˚ 1m standard(Max. 20m) 6X0402 LED
Φ8.5 720*480 30mm-80mm 30mm-80mm 1m standard(Max. 20m) 6X0603 LED

Handle

Screen Battery Working current Standby current Max. power
960 x 240 2.7 inch screen 4xAA ≤250mA <40 microamp < 2W


QBH KS07 Portable Inspection Borescope Camera
