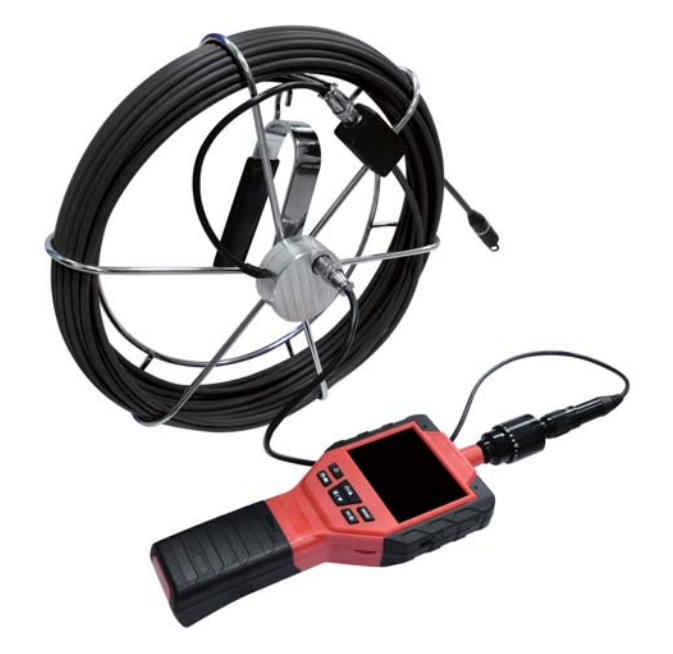

This is a pipe inspection borescope, can realize non-destructive & real-time inspection of narrow pipe, to check block, cracking, corrosion and so on, widely used in building house pipe and industrial pipe inspection
✅3.5" inch LCD automatic power off
✅Stainless steel winding roller
✅High definition camera, semi-rigid snake tube, max 50 meter long
✅Snapshot and recording, storage TF card Max 32G

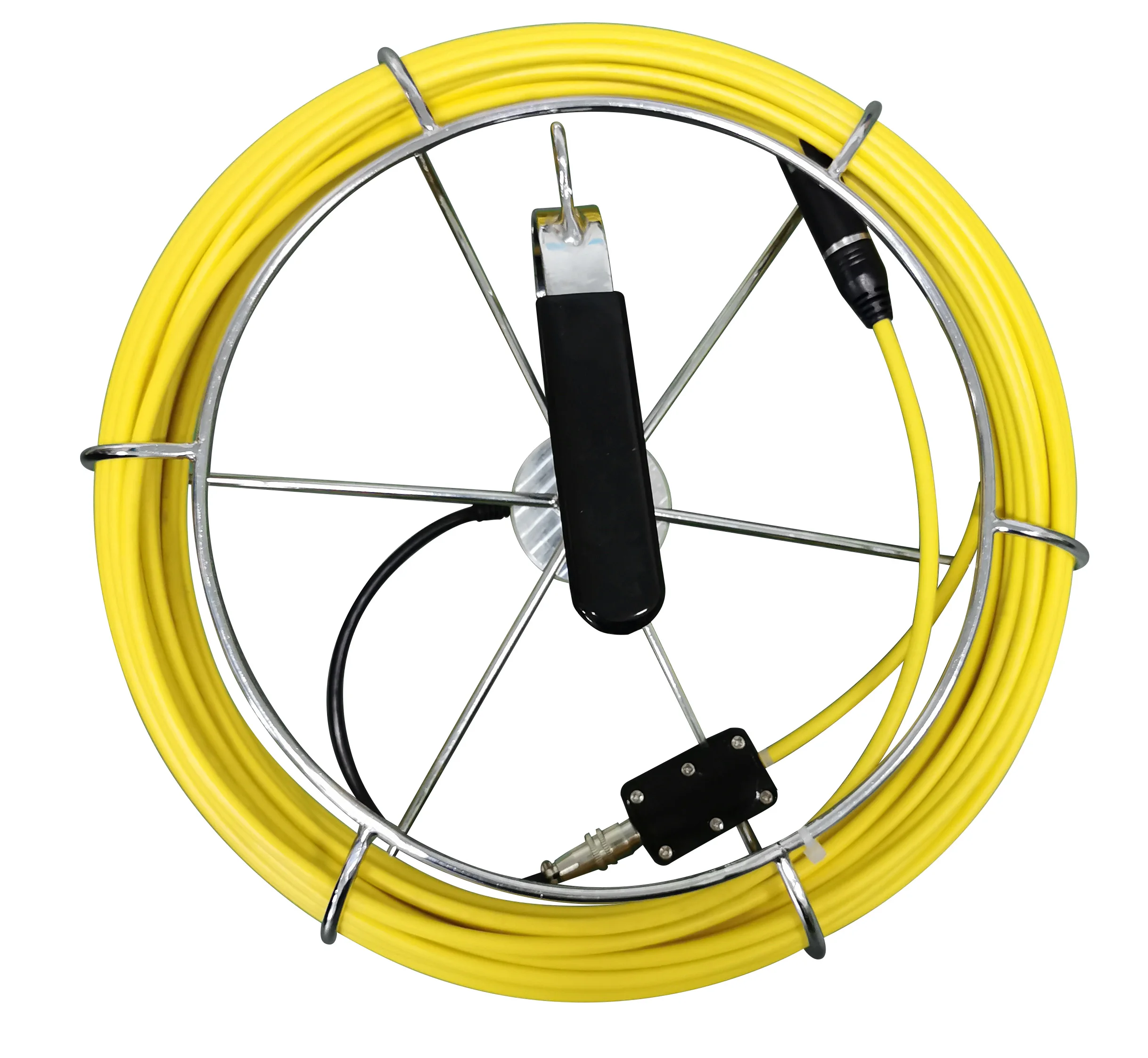

Glassfibre Snake Tube
| Image sensor | Effective pixel | Focus distance | Focus distance of side | View angle | Camera dia. |
|---|---|---|---|---|---|
| CMOS sensor | 720x625 | 30mm-80mm | 10mm-30mm | 60° | Φ5.5 mm/8.0mm |
Dual lens snake tube
| Image sensor | Effective pixel | Focus distance | Focus distance of side | View angle | Camera dia. |
|---|---|---|---|---|---|
| CMOS sensor | 640×480 | 20mm-50mm | 10mm-30mm | 80° | Φ8.0mm |
Two-way articulating Snake tube
| Image sensor | Effective pixel | Focus distance | View angle | Snake tube length | LED adjusting | Camera dia. |
|---|---|---|---|---|---|---|
| CMOS sensor | 720x625 | 20mm-50mm | 60° | 800mm | 6 lamps, illumination can be adjustable | Φ6.0mm |
Host
| Screen | Battery | Working current | Standby current | Max. power |
|---|---|---|---|---|
| 3.5 inch full-view LED screen | 2000mAh lithium battery | 400mA | <40 microamp | <2W |
